PHYL PALLET 5 RUNNERS

The Phyl 5 Runners pallet is the perfect solution for improving logistics operations. It has been tested in accordance with the UNI/ISO 8611-1:2011 standard.

The Phyl Pallet 5 Runners is ideal for any logistics chain.

Phyl represents a new generation of pallets designed to optimize logistics processes—facilitating both mechanical and manual handling of goods.

Manufactured using injection moulding technology as a single-piece structure—with no welds or joints—it eliminates weak points that could be prone to damage.

Its dimensional consistency ensures compatibility with all types of material handling equipment, automation systems, and conveyor systems.

Equipped with five runners, it is highly durable and resistant to intense torsional and compressive loads.

It is suitable for all logistics infrastructures for transport and storage. Its mechanical characteristics and load resistance are tested in compliance with UNI/ISO 8611-1:2011 standards.

It is ideal for the food and beverage industry, particularly when used with our custom dividers. The open-deck design ensures easy cleaning—engineered without areas where water or dirt can accumulate.

Custom colors are available upon request.

For specific applications such as transporting electronic components, we offer special conductive treatment.

If greater strength is required, the Phyl Pallet 5 Runners can be reinforced with polypropylene blended with a special compound.

It can be customized with your company logo, as well as a barcode or RFID tag upon request.

The Phyl Pallet 5 Runners is a robust, high-performance solution designed to improve logistics, fully tested to meet the UNI/ISO 8611-1:2011 standard.

<tdWysokość blatowej części w mm
Technical Details Value

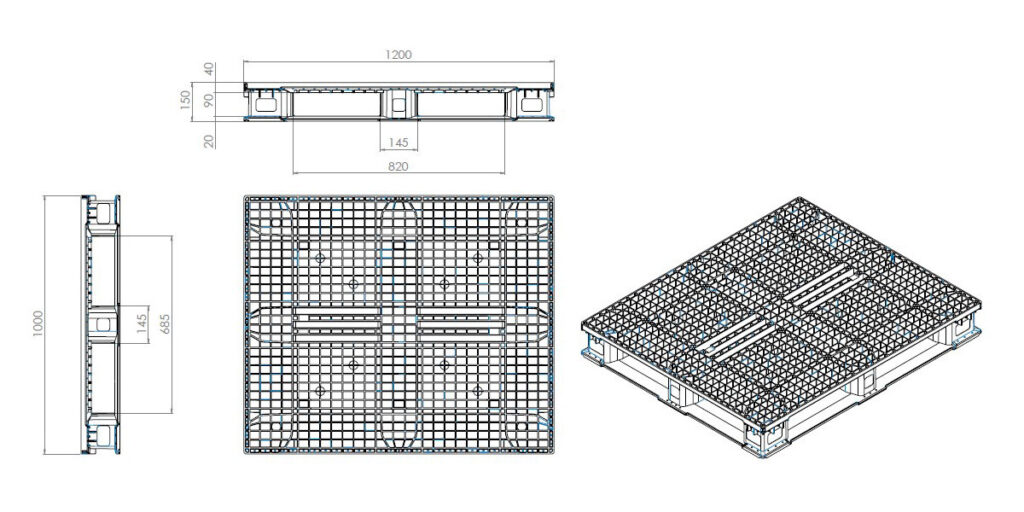

External dimensions (mm) (D x S x W) 1200 x 1000 x 150
Height (mm) 150
Entry height (mm) 90
Weight (kg) 20
Dynamic load* capacity (kg) 1500* depending upon load type
Static load (kg) 5000
Stackable YES
Pallets per stack** 16** custom packaging upon request
Stack height (mm) 2400
Stack weight (kg) 320
Pallets per full truck load 416
RFID-ready YES
Material Polypropylene
Temperature range -20°C to +60°C
Standard colour (others upon request) Black, Blue
