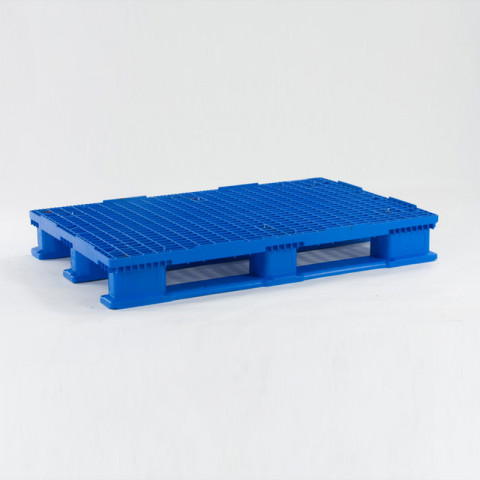

The Phyl Euro pallet size is ideal for optimizing transport and storage operations across all industrial logistics applications.
The Phyl pallet in Euro size is the perfect solution for industrial logistics.
Phyl is a new generation of pallets designed to improve logistics operations, enabling both mechanical and manual handling of goods with ease.
Manufactured using injection moulding technology as a single-piece structure—without any welds or joints—it eliminates weak points that could be prone to damage.
Its dimensional consistency ensures compatibility with all types of material handling equipment, automation systems, and conveyors.
The pallet is durable and resistant to high torsional and compressive loads.
It is suitable for all logistics infrastructures used in transport and storage. Its mechanical properties and load resistance are tested in accordance with UNI/ISO 8611-1:2011 standards.
Ideal for applications in the food and beverage industry, especially when used in combination with our custom-designed layers.

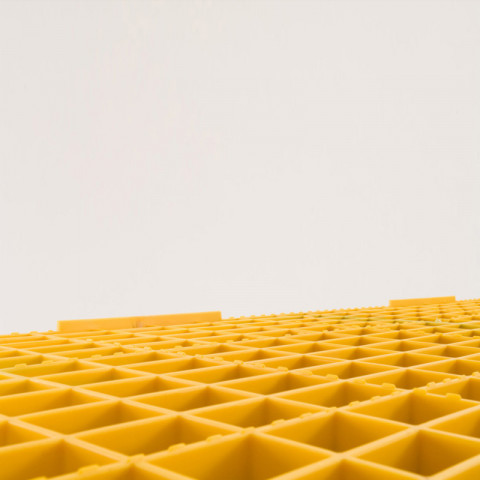

The grid-like structure ensures easy cleaning: it is designed without areas where water or dirt could accumulate.
Custom colors are available upon request.
For specific requirements, such as the transport of electronic components, we can provide special conductive treatment.
If higher strength is needed, we can further reinforce the Phyl pallet using polypropylene with a special compound additive.
It can be customized with the customer’s logo, as well as with a barcode or RFID tag upon request.
The Phyl Euro pallet size is perfect for optimizing transport and storage operations in all types of industrial logistics.

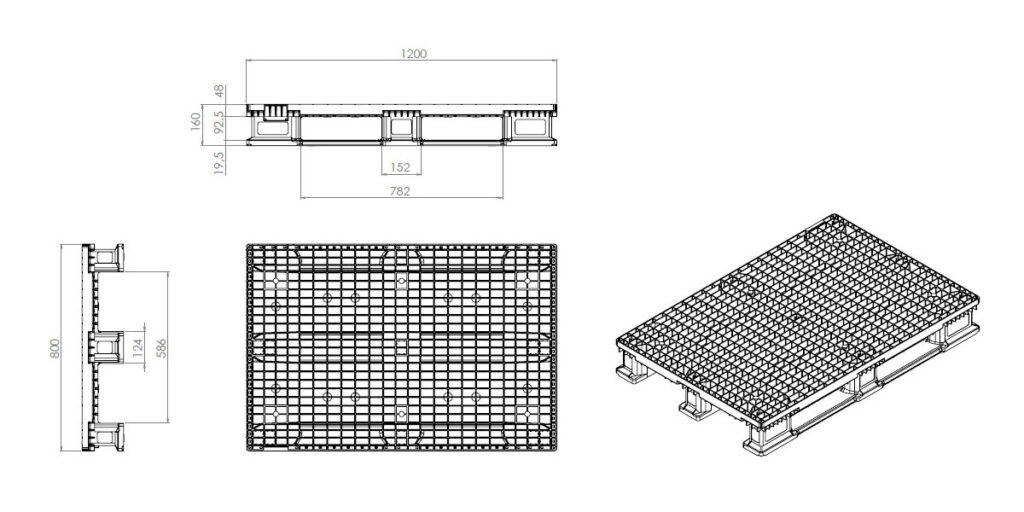

| Technical Details | Value |
| External dimensions (mm) (D x S x W) | 1200 x 800 x 160 |
| Height (mm) | 160 |
| Entry height (mm) | 95 |
| Top deck height (mm) | 47 |
| Weight (kg) | 18,5 |
| Dynamic load* capacity (kg) | 1500* depending upon load type |
| Static load capacity (kg) | 5000 |

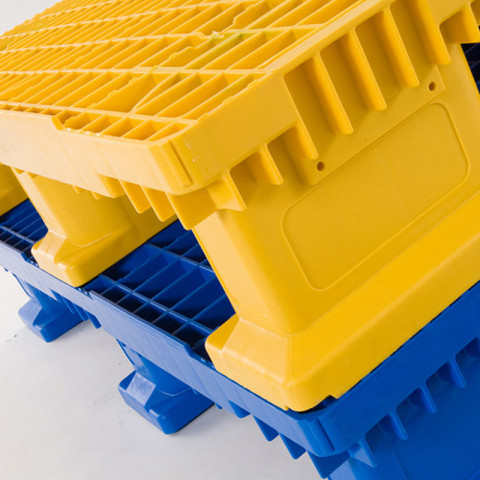

| Stackable | YES |
| Pallets per stack** | 16** custom packaging upon request |
| Stack height (mm) | 2560 |
| Stack weight (kg) | 296 |
| Pallets per full truck load | 528 |
| RFID-ready | YES |
| Material | Polypropylene |
| Temperature range | -20°C to +60°C |
| Standard colour (others upon request) | Black, Blue |
